Supercritical CO2 reaction test machine Reaction test can be carried out by using supercritical / subcritical CO2.

Usage

  1. CO2 extraction from natural products
  2. CO2 drying test
  3. CO2 cleaning test

Please contact us for other tests!

Features

1.Basic specification

1）Device

  1. Supercritical CO2 reaction test machine can carry out various test by using supercritical CO2.
  2. Power supply is 100V. No need to prepare 200V.
  3. Temperature can be set at any point, since warm up heater is equipped. (Room temperature to 120℃-max).
  4. Homogeneous reaction can be carried out since stirrer is equipped in the reaction vessel.
  5. CO2 flow rate can be set at any amount. （60cc/min-max)
  6. Entrainer liquid can be mixed, since an entrainer pump is equipped.
  7. Sample taking in and out is easy, since the reaction vessel is designed for easy disassemble.
  8. Device replacement for maintenance and specification change is easy since all the measure devices are unit constriction.
  9. Most of the temperatures are collected as data, since data logger is equipped in the control panel.
    Data are collected in a PC with installing bundled software in your PC. (PC is not in the scope of supply.)
  10. Data sampling interval can be set at any cycle on the PC.
  11. It correspond Japanese High Pressure Gas Safety Act.

２）Design condition

  1. Maximum pressure: 30MPa
  2. Maximum temperature: 120℃
  3. CO2 flow rate：60cc/min

Supercritical CO2reaction test machine


※The image is one way type

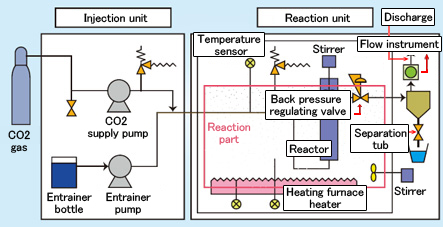

Flow for Supercritical CO2reaction test machine

Utility

Power supply AC100V 15A
Dimension 1730W×600D×1600H
Weight approximately 100kg

CO2 supply system

CO2supply pump ～60cc/min 30MPa with cooling head 1set
Chiller unit Air cooled Cooling capacity 450W at10℃ 1set
Ancillary equipment Safety valve, check valve, globe valve, pressure indicator, filter 1set

Entrainer supply system

Entrainer bottle 1L 1set
Entrainer pump ～9.99cc/min 30MPa 1set
Ancillary equipment Safety valve, globe valve, pressure indicator 1set

Heating oven

Heating oven Hot air circulation type 100V 900W　max120℃ 1set
Reaction vessel 160cc　(Φ32×200H) 30MPa　material：SUS304 1set
Stirrer rotation：～300rpm　Pressure：30MPa 1set
Ancillary equipment Safety valve, pressure regulator, pressure transmitter 1set

Separation and exhaust devices

Separation vessel 100cc　7MPa　material：SUS304 1set
CO2 flow meter Dry type flow meter Pressure: atmospheric 1set
Ancillary equipment Glove valve 1set
Supercritical CO2 reaction test machine (CO2 recycle type) Cyclic usage of the carbon dioxide can be collected and carried out with carbon dioxide test equipment by using supercritical / subcritical CO2.

Supercritical CO2 reaction test machine


※The image is one way type

Features

1.Basic specification

1）Device

  1. Supercritical CO2 reaction test machine can carry out various test by using supercritical CO2.
  2. CO2 is recycled for reducing CO2 consumption.
  3. Power supply is 100V. No need to prepare 200V.
  4. Temperature can be set at any point, since warm up heater is equipped.
    (Room temperature to 120℃-max).
  5. Homogeneous reaction can be carried out since stirrer is equipped in the reaction vessel.
  6. CO2 flow rate can be set at any amount. （60cc/min-max)
  7. Entrainer liquid can be mixed, since an entrainer pump is equipped.
  8. Sample taking in and out is easy, since the reaction vessel is designed for easy disassemble.
  9. Device replacement for maintenance and specification change is easy since all the measure devices are unit constriction.
  10. Most of the temperatures are collected as data, since data logger is equipped in the control panel.
    Data are collected in a PC with installing bundled software in your PC. (PC is not in the scope of supply.)
  11. Data sampling interval can be set at any cycle on the PC.
  12. It correspond Japanese High Pressure Gas Safety Act.

2）Design condition

  1. Maximum pressure: 30MPa
  2. Maximum temperature: 120℃
  3. CO2 flow rate：60cc/min

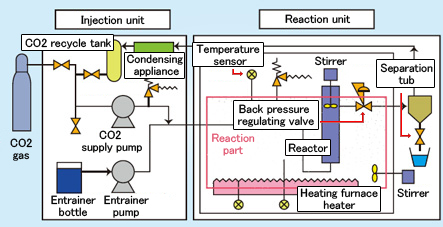

Flow for Supercritical CO2 reaction test machine circulation

Utility

Power supply AC100V 15A
Dimension 1730W×600D×1600H
Weight approximately 100kg

CO2 supply system

CO2 supply pump ～60cc/min 30MPa with cooling head 1set
Chiller unit Air cooled Cooling capacity 450W at10℃ 1set
Ancillary equipment Safety valve, check valve, globe valve, pressure indicator, filter 1set

Entrainer supply system

Entrainer bottle 1L 1set
Entrainer pump ～9.99cc/min 30MPa 1set
Ancillary equipment Safety valve, globe valve, pressure indicator 1set

Heating oven

Heating oven Hot air circulation type 100V 900W　max120℃ 1set
Reaction vessel 160cc　(Φ32×200H) 30MPa　material：SUS304 1set
Stirrer rotation：～300rpm　Pressure：30MPa 1set
Ancillary equipment Safety valve, pressure regulator, pressure transmitter 1set

Separation and exhaust devices

Separation vessel 100cc　7MPa　material：SUS304 1set
Condenser tank Coaxial 1set
CO2recycle tank 1000cc　7MPa 1set
Ancillary equipment Glove valve 1set
