The high pressure slurry pump can perform the high pressure stable supply of slurry like solution or viscos solution which was not able to supply with conventional plunger pumps.
Moreover, the stirrer is attached to the lower part in the cylinder, and the slurry solution in a cylinder can be supplied as uniform slurry, without dissociating and sedimenting.
This equipment mainly consists of one set of a high pressure cylinder, and a low-pressure pump and a material pressurize feed tank.
The materials, which are filled in the pressurized in the feed tank, are supplied to a high pressure cylinder by one button operation with compressed air.
The materials liquid, which is supplied to the high pressure cylinder, is discharged from the cylinder by the pressure and the flow of a supply pump.
Since automatic washing function in a system is equipped, washing before operation and after operation is performed easily and automatically.
Moreover, since the cylinder is designed for easy assemble, the cylinder is easily washed and cleaned with disassembled from the system.

• The stable supply of slurry like solution or high viscosity solution is possible.
• System cleaning at the time of a material change is easy. (Automatic cleaning function)
• Easy disassemble and cleaning.
• Wide range of flow control
• No sedimenting and separation by stirrer at the bottom of cylinder.
• The high-pressure continuous supply with no rippling.

Discharge pressure	30MPa
Temperature	Room temperature
Flow rate	0.1～10cc/min Large flow type（100cc／min）is possible
Cylinder capacity	200cc
Outside dimension	W550×D550×H1,170

High viscosity solution
Slurry solution
Please consult us for specific viscosity, particle diameter, concentration, and the solvent to be used. Depending on a solvent, change may be required for gasket, the material of piping, etc.

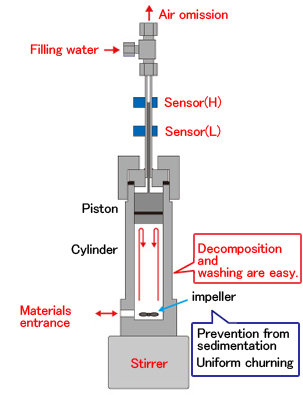

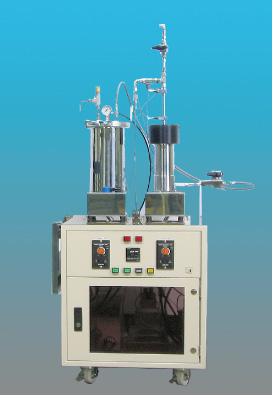

●High pressure slurry pump	●Cylinder structure

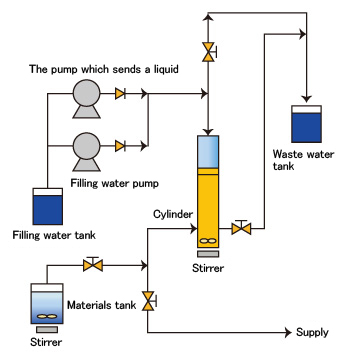

●High pressure slurry pump flow

Outline

The high pressure slurry pump can perform the high pressure stable supply of slurry like solution or viscos solution which was not able to supply with conventional plunger pumps.
Moreover, the stirrer is attached to the lower part in the cylinder, and the slurry solution in a cylinder can be supplied as uniform slurry, without dissociating and sedimenting.
This equipment mainly consists of two sets of high pressure cylinders, and two low pressure pumps and a material pressurize feed tank.
The materials, which are filled in the pressurized in the feed tank, are supplied to a high pressure cylinder automatically with compressed air.
The two high pressure cylinders are operated alternately. While one side is discharging materials, another side is filled up with materials from a pressure feed tank. The materials liquid, which is supplied to the high pressure cylinder, is pressurized to 30MPa by the finish press pump (Pressure can be adjustable), is discharged from the cylinders without having ripping of the pressure and flow.
Since automatic washing function in a system is equipped,flushing before operation and after operation is performed easily and automatically.
Moreover, since the cylinder is designed for easy assemble, the cylinder is easily washed and cleaned with disassembled from the system.
Operation of the system can be easily carried out looking at the state of equipment, since a graphical human interface by a touch panel is adopted.

Features

• The stable supply of slurry like solution or high viscosity solution is possible.
• System cleaning at the time of a material change is easy. (Automatic cleaning function)
• Easy disassemble and cleaning.
• Wide range of flow control
• No sedimenting and separation by stirrer at the bottom of cylinder.
• Continuous / high pressure discharge without pulsation

Equipment specification

Discharge pressure	30MPa
Temperature	Room temperature
Flow rate	0.1～10cc/min Large flow type（100cc／min is possible
Cylinder capacity	200cc×2Stand
Outside dimension	W1,190×D600×H1,350

Application examples

High viscosity solution
Slurry solution
Please consult us for specific viscosity, particle diameter, concentration, and the solvent to be used.

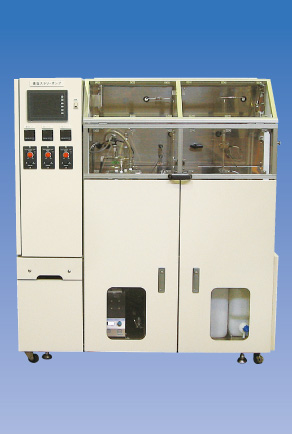

●Continuous high pressure slurry pump	●Cylinder structure

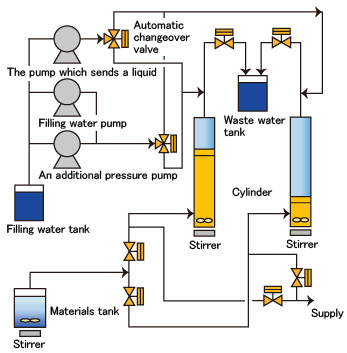

●Continuous high pressure slurry pump flow
